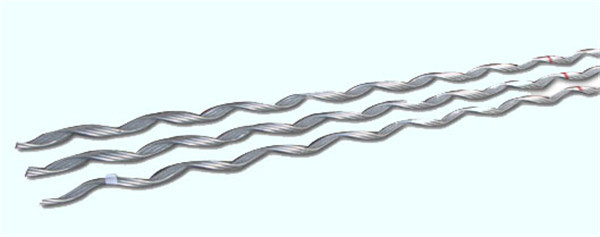

Compression ACSR Jumper 8.00mm Preformed Conductor Splice Strand

Compression ACSR Jumper 8.00mm Preformed Conductor Splice Strand
Compression ACSR Jumper 8.00mm Preformed Conductor Splice Strand
Compression ACSR Jumper 8.00mm Preformed Conductor Splice Strand Compression ACSR Jumper 8.00mm Preformed Conductor Splice Strand
Basic Information
Place of Origin: CHENGDU CHINA
Brand Name: HLLP
Model Number: TJ4000
Minimum Order Quantity: 100 sets
Price: US$ 0.4-5 per set
Packaging Details: Carton pallets,wooden cases, or as required by customer
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 10000 sets per month
Contact Now
Material: Aluminum Alloy Product Length: 300-1800mm
Sandard: GB,or According To Customer Requirement Customized Products: Yes
Highlight:

ACSR preformed splice Strand

,

Compression ACSR splice Strand

,

8.00mm preformed splice Strand

Jumper conductor splice for ACSR



    Jumper conductor splice for ACSR is made of aluminum-allovy wire,and is desighed to use for connection of conductor terminal.During installation,care should be taken to ensure a successful installation .This product is intended for use by trained crafts people only.


Jumper splice for ACSR
Model Suitable Conductor Dia(mm) GB1179-1983 Suitable Conductor Color Code
Clamp Length(mm)
MIN  MAX LGJ/LGJF Steel Reinforced Aluminium Conductor
TJ 4110 4.40 4.90 10/2 Red 535
TJ 4111 5.30 5.70 16/3 Yellow 585
TJ 4112 6.60 7.10 25/4  Blue 695
TJ 4113 8.00 8.60 35/6 Green 510
TJ 4114 9.40 9.80 50/8 Black 635
TJ 4115 11.30 11.75 50/30,70/10 Red 645
TJ 4116 13.30 13.80 70/40,95/15 Yellow 785
TJ 4117 13.81 14.00 95/20 Blue 795
TJ 4118 14.41 15.10 120/7,120/20 Green 930
TJ 4119 15.60 16.20 95/55,120/25,150/8 Black 990
TJ 4120 16.50 17.00 150/20 Red 1020
TJ 4121 17.01 17.60 150/25,150/35 Yellow 1060
TJ 4122 17.80 18.20 120/70,185/10 Blue 1100
TJ 4123 18.60 19.20 185/25,185/30,210/10 Green 1126
TJ 4124 19.50 20.10 185/45,210/25 Black 1183
TJ 4125 20.20 20.96 210/35,210/50 Red 1195
TJ 4126 21.50 21.64 240/30 Yellow 1223
TJ 4127 21.65 22.50 240/40,240/55 Blue 1411
TJ 4128 22.90 23.50 300/15,300/20 Green 1471
TJ 4129 23.60 24.30 300/25,300/40,300/50 Black 1510
TJ 4130 24.90 25.40 300/70 Red 1497
TJ 4131 26.50 27.10 400/20,400/25,400/35 Green 1631
TJ 4132 27.50 27.90 400/50 Blue 1615
TJ 4133 27.91 28.20 400/65 Green 1747
TJ 4134 29.00 29.50 400/95 Black 1793
TJ 4135 29.80 30.20 500/35,500/45 Red 1805
TJ 4136 30.80 31.20 500/65 Yellow 1818

Products can be customized according to customer requiremts.
